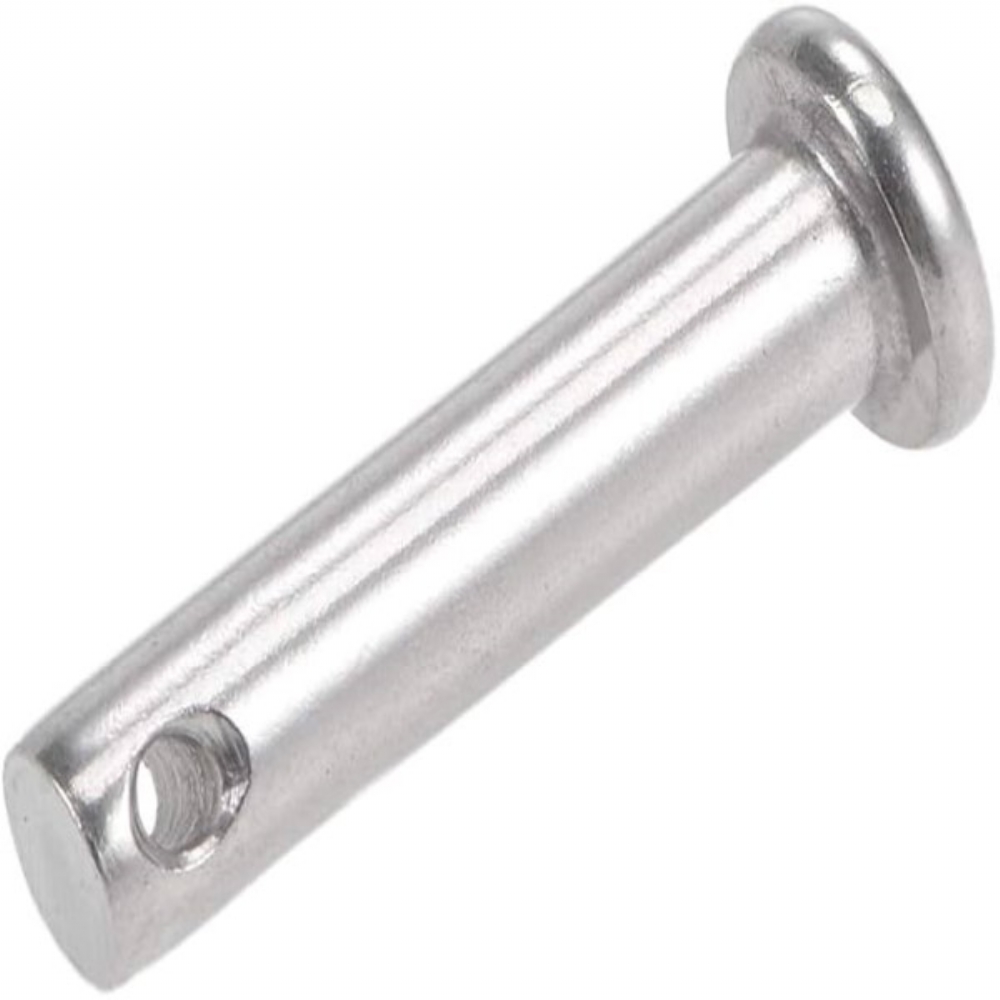

Clevis pin A4-AISI 616

Available in :

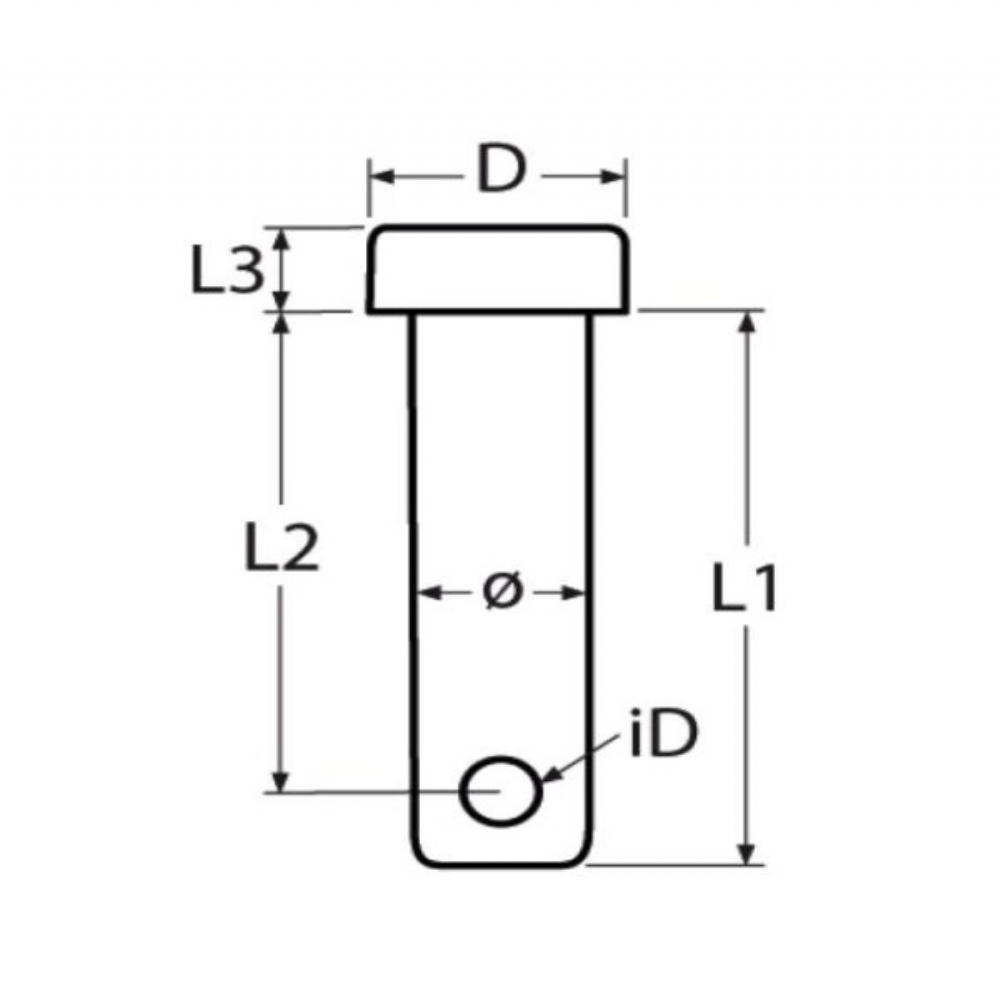

Ø 4,0*L1 14*L2 11.0*L3 2.0*D 6*iD 2.0

Ø 4,0*L1 20*L2 16.0*L3 2.0*D 6*iD 2.0

Ø 5,0*L1 15*L2 11.0*L3 2.0*D 8*iD 2.5

Ø 5,0*L1 18*L2 14.0*L3 2.0*D 8*iD 2.5

Ø 5,0*L1 19*L2 15.0*L3 2.0*D 8*iD 2.5

Ø 5,0*L1 21*L2 17.0*L3 2.0*D 8*iD 2.5

Ø 6,0*L1 15*L2 11.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 19*L2 15.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 20*L2 16.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 24*L2 20.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 25*L2 21.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 29*L2 25.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 34*L2 30.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 36*L2 32.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 44*L2 40.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 45*L2 41.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 54*L2 50.0*L3 2.0*D 10*iD 2.5

Ø 6,0*L1 64*L2 60.0*L3 2.0*D 10*iD 2.5

Ø 8,0*L1 21*L2 17.0*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 22*L2 18.5*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 24*L2 20.0*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 25*L2 21.0*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 27*L2 23.0*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 32*L2 28.0*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 34*L2 30.0*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 44*L2 40.0*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 54*L2 50.0*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 64*L2 60.0*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 74*L2 70.0*L3 2.5*D 12*iD 3.0

Ø 8,0*L1 84*L2 80.0*L3 2.5*D 12*iD 3.0

Ø 9,0*L1 25*L2 21.5*L3 2.5*D 12*iD 3.0

Ø 9,0*L1 28*L2 24.0*L3 2.5*D 12*iD 3.0

Ø 9,5*L1 26*L2 22.0*L3 2.5*D 13*iD 3.0

Ø 9,5*L1 30*L2 26.0*L3 2.5*D 13*iD 3.0

Ø 10.0*L1 26*L2 22.0*L3 2.5*D 14*iD 3.0

Ø 10.0*L1 34*L2 30.0*L3 2.5*D 14*iD 3.0

Ø 10.0*L1 44*L2 40.0*L3 2.5*D 14*iD 3.0

Ø 10.0*L1 54*L2 50.0*L3 2.5*D 14*iD 3.0

Ø 10.0*L1 64*L2 60.0*L3 2.5*D 14*iD 3.0

Ø 10.0*L1 74*L2 70.0*L3 2.5*D 14*iD 3.0

Ø 10.0*L1 84*L2 80.0*L3 2.5*D 14*iD 3.0

Ø 10.0*L1 94*L2 90.0*L3 2.5*D 14*iD 3.0

Ø 10.0*L1 104*L2 100.0*L3 2.5*D 14*iD 3.0

Ø 11.0*L1 29*L2 25.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 30*L2 26.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 32*L2 28.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 45*L2 40.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 55*L2 50.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 65*L2 60.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 75*L2 70.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 85*L2 80.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 95*L2 90.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 105*L2 100.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 115*L2 110.0*L3 3.0*D 16*iD 3.0

Ø 12.0*L1 125*L2 120.0*L3 3.0*D 16*iD 3.0

Ø 14.0*L1 41*L2 36.0*L3 3.0*D 18*iD 4.0

Ø 16.0*L1 36*L2 31.0*L3 4.0*D 21*iD 4.0

Ø 16.0*L1 41*L2 36.0*L3 4.0*D 12*iD 4.0
